XRF analyzer / Handheld XRF Analyzer
Handheld Soil Analzyer Terra600 Series
AXR Terra600 Series Handheld Soil Analyzer is an important tool for soil and sediment screening. It can detect hazardous heavy metals within seconds. Using AXR Terra600 for on-site rapid soil screening significantly reduces the number of samples that need to send to laboratory for analysis, reducing analysis costs and analysis time. And soil treatment and remediation costs can be minimized by rapidly screening and delineating contaminated areas and identifying remediation areas on-site.
+86519-83550835
NEED A SUGGESTION FOR YOUR APPLICATION? EMAIL US REQUEST FOR QUOTATION
Introduction

Heavy metal pollutants remaining in the soil will still cause harm to the human body after many years. Some production activities in the manufacturing and mining industries, the use of fertilizers and pesticides in the agricultural sector, and improper landfill disposal all have the risk of soil pollution, which may lead to heavy metal pollutants such as cadmium, mercury, lead, and chromium hazards.


Therefore screening and remediation of soil contamination is a major challenge. In situ soils analysis, contaminated soil testing and sediments screen with XRF is an effective solution to address such challenges. The handheld XRF analysis method is an internationally recognized method for soil heavy metal screening.



AXR Terra600 Series Handheld Soil Analyzer is an important tool for soil and sediment screening. It can detect hazardous heavy metals within seconds. Using AXR Terra600 for on-site rapid soil screening significantly reduces the number of samples that need to send to laboratory for analysis, reducing analysis costs and analysis time. And soil treatment and remediation costs can be minimized by rapidly screening and delineating contaminated areas and identifying remediation areas on-site.

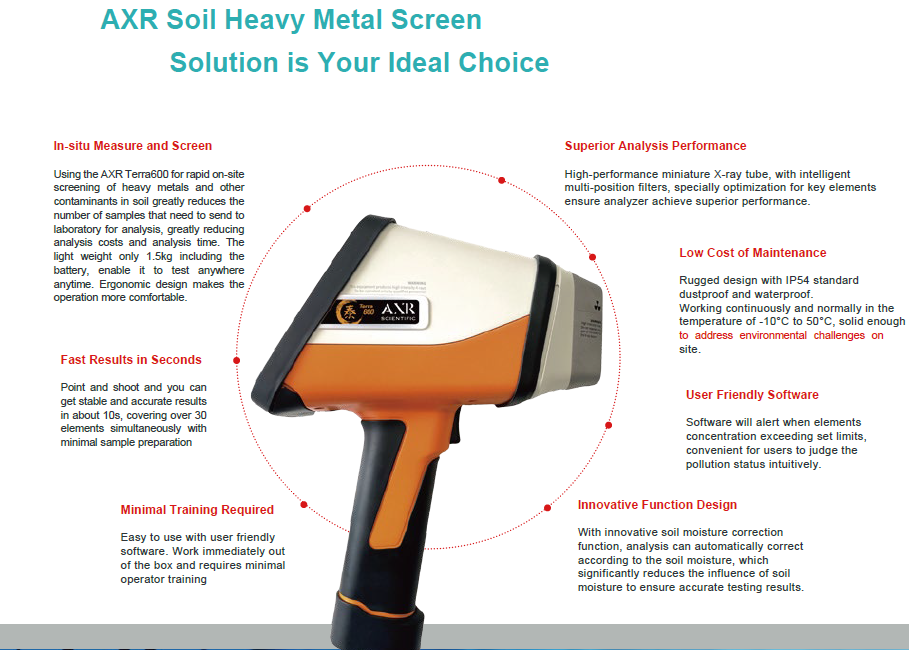

axr scientific handheld xrf analzyer


Typical Applications

Beside soil and sediment screening, AXR Terra600 series analyzers are also widely used in the test of river slough pollution projects, environmental testing near pollution sources, landscaping projects, geological surveys etc. Heavy metal pollutants contained in dust, filters, film layers, lead paint and air filters etc., to conduct a comprehensive inspection and evaluation of the environment.

AXR scientific handheld soil analyzer



Advantage
In-situ Measure and Screen
Using the AXR Terra600 for rapid on-site screening of heavy metals and other contaminants in soil greatly reduces the number of samples that need to send to laboratory for analysis, greatly reducing analysis costs and analysis time.
Fast Results in Seconds
Point and shoot and you can get stable and accurate results in about 10s,
covering over 30 elements simultaneously with minimal sample preparation
Minimal Training Required
Easy to use with user friendly software. Work immediately out of the box and requires minimal operator training
Superior Analysis Performance
High-performance miniature X-ray tube, with intelligent multi-position filters, specially optimization for key elements ensure analyzer achieve superior performance.
Low Cost of Maintenance
Rugged design with IP54 standard dustproof and waterproof.
Working continuously and normally in the temperature of -10°C to 50°C, solid enough to address environmental challenges on site.
User Friendly Software
Software will alert when elements concentration exceeding set limits, convenient for users to judge the pollution status intuitively.
Application
Specification
ModelTerra600/Terra600P/Terra600S
ExcitationCeramic packaged microfocus X-ray tube, Ag target tube,50kV
DetectorHigh performance Si-Pin detector /Optimized SDD detector
FilterMulti position automatic filter changer
Window Kapton with anti-puncture window design optional
Collimator5mm collimator
Battery7.2V Li-ion battery,6800mAh
DisplayCapacitive touch color display
Exceeding AlertWhen elements concentration exceeds the setting limits, software will alert
One Touch Operation One touch testing
Soil Moisture CorrectionAnalysis can automatically correct according to the soil moisture
Data storage100000+data storage
Data transferWiFi、USB
Radiation safetySafety guard device, tube shutoff while no sample , Password-protected user security
Camera(optional)Integrated CCD camera with autofocus lens for positioning and recording measuring point positions
Environment Temp-10°C~50°C Humidity 0%~80%
WeightApprox. 1.5kg (3.3lbs) including battery
DimensionsL x W x H: 220mm*91mm*276mm
Software languageEnglish and other languages
