The content of main elements in precious metal jewelry directly affects its quality, appearance and maintainability, and has a significant impact on its production, sales and purchase. The basic price of precious metals is high and the weight is small. The fluctuation of the raw material market price will lead to significant changes in production costs and sales prices. It can be seen that the production, sales and consumption of precious metal jewelry have a high demand for accurate quantitative analysis of the content of precious metal elements.
For on-site identification of precious metal quality, there are traditional methods, such as weighing and calculating density, observing color and lustre, and hardness testing. These on-site identification methods rely on experience, and even if they are experienced, they may be misjudged and have poor reliability; accurate analysis can be done in relevant identification agencies, but the timeliness is poor.
With the Terra 990 Handheld XRF Analyzer,
accurate quantitative analysis of precious metal elements can be achieved. The
instrument has good performance, easy operation and easy to read results. At
the same time, Terra 990 is non-destructive testing, which avoids the possible
impact of testing and analysis on the appearance and performance of the gold
and jewelry to be tested.
The Terra 990 Handheld XRF Precious Metal
Analyzer provides a complete solution for elemental analysis in
the production, sale and recycling of precious metal products. The instrument
is equipped with a high-performance X-ray excitation device and Si-PIN
detector, which can achieve accurate quantitative analysis. Customers can also
choose a silicon drift detector (SDD) to improve the resolution of the instrument
and reduce the time required for analysis.
1.Fast and accurate:
Fast, accurate and reliable analysis, the analysis results can be displayed in
seconds;
2.Intuitive and easy to use:
Large-size high-definition touch screen, graphical interface, and the test
results are intuitive and clear;
3. Safe and non-destructive:
An automatic radiation protection device is installed to protect the safety of
operators, and the detection does not damage the appearance of precious metal
samples;
Simple and lightweight:
4. No need for much training, easy to operate. Compact design for easy
portability without any sample preparation.

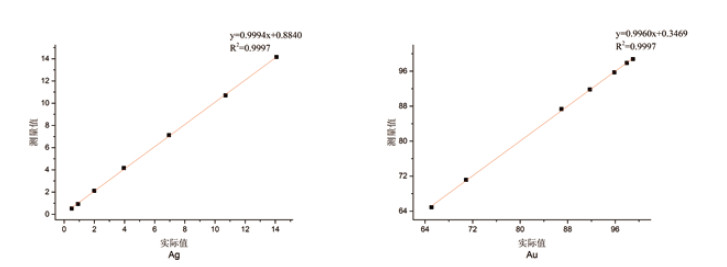

The quantitative analysis of the Terra 990 handheld XRF elemental analyzer is realized by the Fundamental Parameter (FP) method. The quantitative analysis accuracy of the Fundamental Parameter method is good, and in the calibration work of the subsequent analysis, there is no need to use additional standard samples. The empirical correction method has higher analysis efficiency in practical applications. According to the quantitative analysis results of gold (Au) and silver (Ag), we perform linear fitting with the actual content and measured values of the elements as the horizontal and vertical axes respectively:
The results show that the instrument can accurately reflect the actual content of elements in different samples, and has good on-site analysis ability.

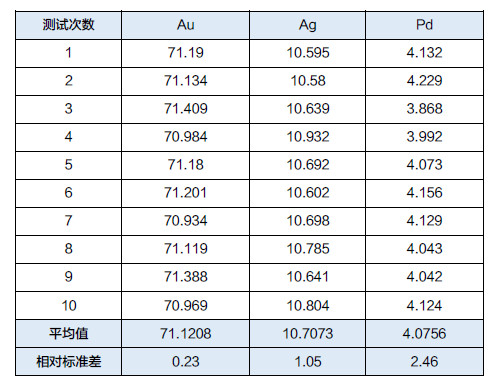

In order to test the stability and repeatability of the Terra 990 handheld XRF elemental analyzer, we selected standard samples containing gold (Au), silver (Ag), and palladium (Pd) three precious metal elements for 10 tests, each test time It is 30s (data units are all percentages), and the test results are compared with the sample data:

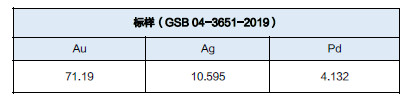

Standard Vlaue
The test results show that the analysis results of the Terra 990 handheld XRF elemental analyzer are stable, accurate and repeatable, and the reliability of the instrument is good.

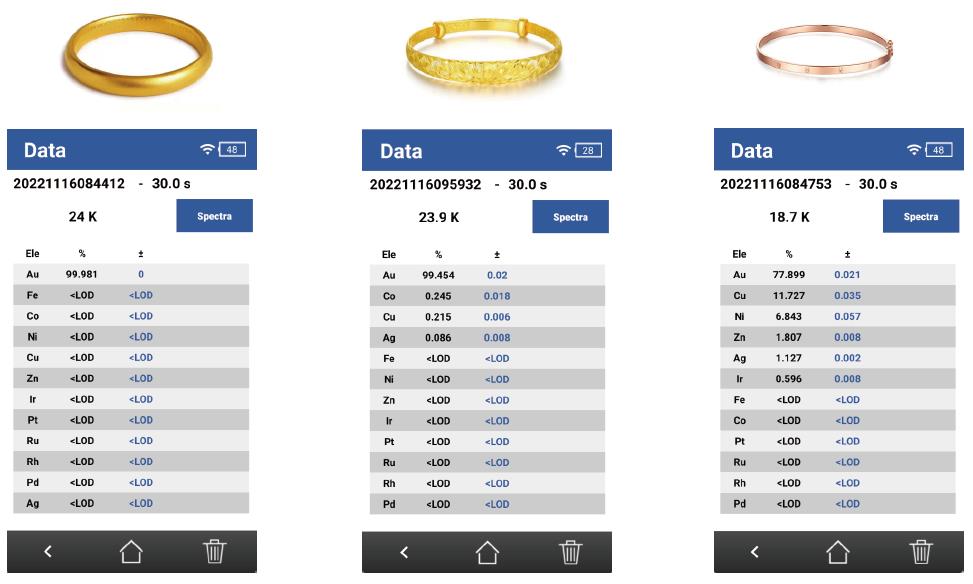

AXR Scientific selected three different types of gold bracelets from three well-known national gold jewelry brands: pure gold (gold content not less than 99.9%), pure gold (gold content not less than 99%), rose gold (gold content not less than 99%) at 75%), and then analyzed it using a Terra 990 handheld XRF elemental analyzer with the following results:
The results show that the Terra 990 handheld XRF element analyzer can accurately detect the content of precious metal elements in jewelry, and can be used as an on-site analysis tool for precious metal jewelry quality control, identification and trading. At the same time, Terra 990 can also provide customers with scientific pricing basis in the production, sales and recycling of precious metal jewelry. For more details, please visit the company's website or call for consultation.
