When people try to do use dentures to bridge the gap left by missing teeth, there are several dentures made of different materials. Generally denture materials include all-ceramic materials, resin materials and metal materials. Those made of precious metals and all-ceramic materials have always been better, have better biocompatibility, and are more comfortable to wear after wearing. They are closer to the color of natural teeth, have higher aesthetics, and are used for a longer time. And the cost is also high for reason of the material used.
The second type of commonly used dentures is metal dentures. Generally they are made of a mixture of two metals: cobalt and chromium. Both the base and the teeth are made of metal; however, the visible portion of the tooth has an enamel-colored tint to it while the gum is made of pink colored metal. Metal dentures fix to the gum without much hassle and are supported by neighboring teeth.
• Good Durability: gold denture generally has a dense and hard composition, which highly resistant to corrosion and will not crack, damaged, or fracture easily.
• Aesthetic Attractive: For many people, gold is perceived as a status symbol. Choosing gold crowns for your partial or full dentures is sure to help create a smile that is unique to you.
• Gentle on Natural Teeth: Partial dentures rub against natural teeth as part of normal use. Gold crowns for your Gold Dentures are gentle on adjacent teeth and will wear evenly with them.
Because some metal denture are made of precious metal, the cost of the material is high. Therefore there are chances that some manufacture of the alloy denture may cheat in the material. Even worse some use shredded steel, steel scrap and even added metal scrap in the material. So for a whole seller who are involved in the deal should be very careful about the supplier quality.
And even for the manufacture of these medical planting wares, they purchase alloy material from outside and they need to do the incoming inspection for the material they bought from their supplier.
The composition of precious metal alloys used in dentures needs to meet the National Stadnards
These standards specify a number of detection methods for testing the material chemical compositions. These include wet chemical methods for quantitative analysis, titration and ICP methods for determination. However, with these methods the sample needs to be destroyed, the sample preparation time is long, and the operation steps are cumbersome, so it is not suitable for rapid on-site detection.
Compared with wet chemical methods, X-ray fluorescence spectrometer analysis has the advantages of fast analysis speed, high analysis accuracy, and non-destructive testing.
Compared with benchtop XRF analyzers, handheld XRF analyzers are more convenient and faster to use, and are easy to master, making them more suitable for on-site inspections.
Following is a testing results comparison for testing the same sample with a HHXRF and ICP method.

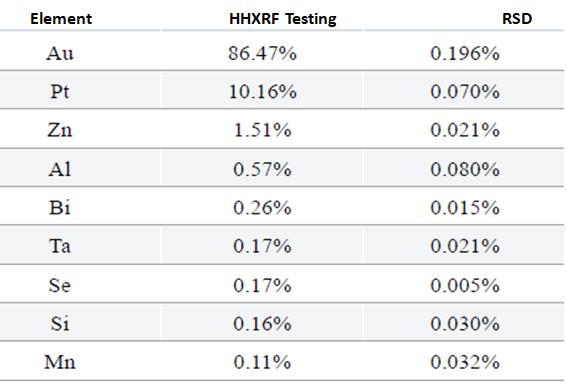

1-Use Handheld XFR to test Gold Denture

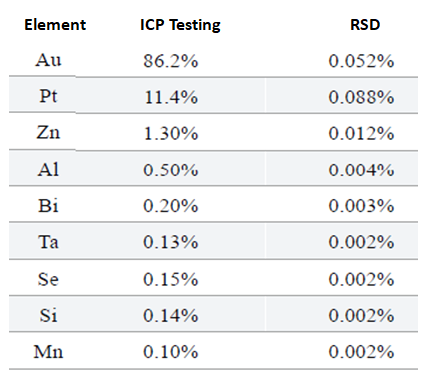

2-Use handheld ICP-MS to test the same gold denture
ICP testing has high precision and high sensitivity, but this is only for the metal ions in the liquid sample, and it needs to be converted again for the solid sample. However, precious metals have good stability, and most of them are difficult to exist in the solution in stable ionic form, which directly affects the detection results.
XRF uses the primary X-rays emitted by the X-ray tube to irradiate the sample, so that the sample is excited to emit characteristic X-ray fluorescence, and then through the X-ray fluorescence energy analysis and intensity measurement, the type and content of the elements in the sample can be quantitatively calculated.
XRF can directly test solid samples, and can perform non-destructive testing on samples that meet the test requirements. At the same time, the test speed is fast and the sensitivity is high. Since the handheld XRF analyzer is more portable, it is more suitable for rapid spot check and quality control of samples.
The performance of the handheld XRF analyzer Terra900 series can fully meet the requirements for rapid onsite check and quality control of denture metal raw materials.
